Aluminum Machining HRC 55 degree Milling Cutter Carbide End Mills


1. MOQ:10pcs
2. High strength
3. Good wear resistance
4. Good roughness

Description: Carbide CNC end mill,milling cutter ,end mill,carbide end mill,milling cutter manufacturer, end mill factory
Availability:
Quantity:
Inquire Add to Basket

  • Aluminum MachiningHRC55 Carbide End Mill

  • MOTON

For Aluminum Machining

Coated: Nano Blue Co contect:10%
Super Micro Grain size: 0.5μm
Hardness >3400 N/mm²

Thermal Stability 900℃
Hardness HRA 92
Workpiece below HRC55
Helix angle 35°-45°
Diameter of Flute  : 1-20mm
Diameter of Shank: 4-20mm
OverAll Length:50-200 mm
Cutting Form:Flat, Square Ballnose,Corner Radius,Micro diameter

Suitable for:Aluminum and no-fe products

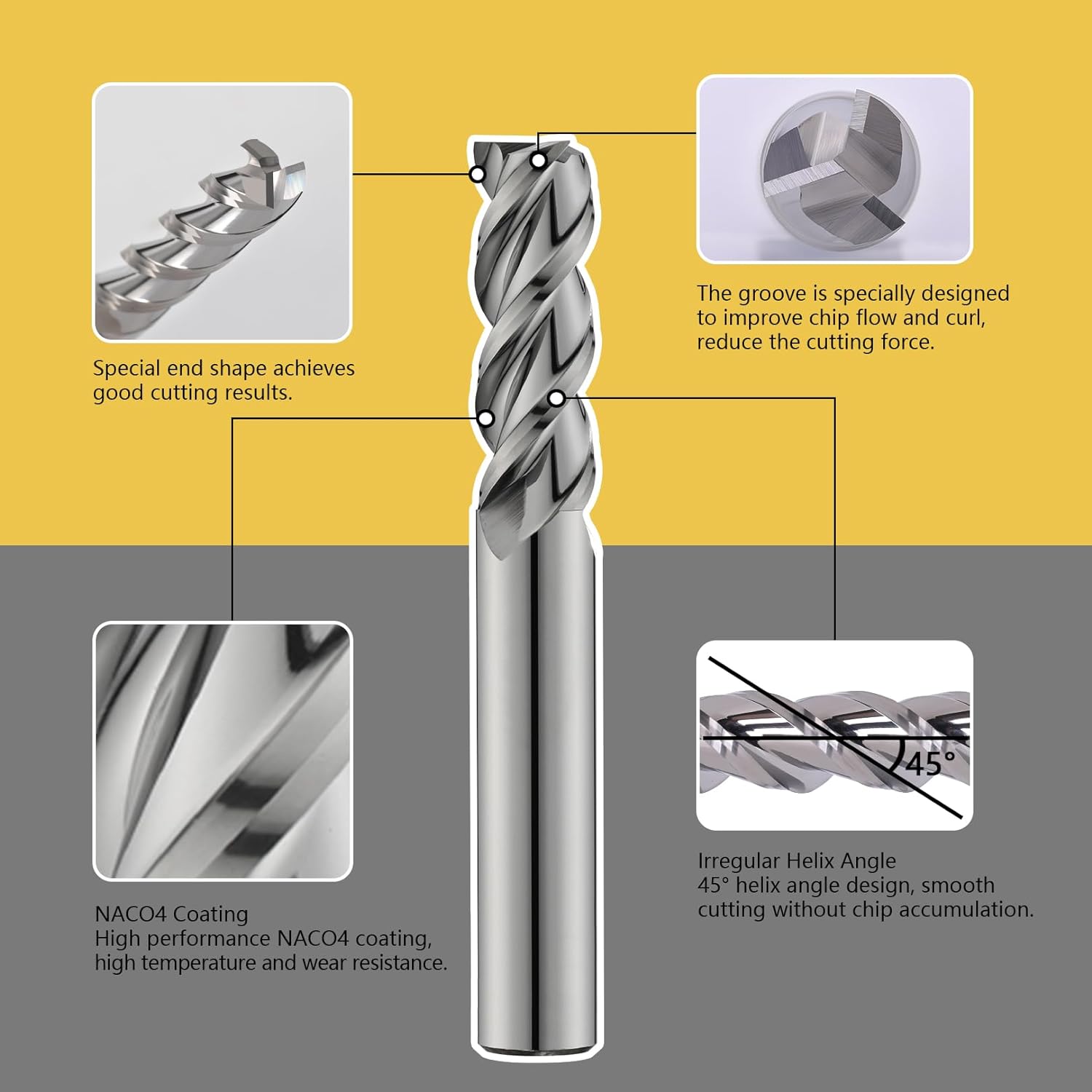

moton_tools_carbide_milling_cutter_18moton_tools_carbide_milling_cutter_68moton_tools_carbide_milling_cutter_29



moton_tools_carbide_milling_cutter_4

moton-tools_end_mill11

moton_tools_end_mill22

Why choose us?
1.  Carbide Rod: We adopts 100% original carbide rod, to make sure the purity of raw materials.
2.  40+ Machining Center: Anca & Walter & Rollomatic machining center, to guarantee the high precision and stable quality.
3.  High Precision: All end mills will be strictly inspected one by one.
e.g. flute part tolerance ±0.005mm is qualified, no crack after 150 times magnification is qualified

4.  Thoughtful Packaging: Every end mills with a small protection cap to protect the flute parts against the damage during shipping.

moton_tools_carbide_milling_cutter_37


Our technical department is keep improving the product quality and versatility to enhance our competitive advantages.
E.g. advanced flute design, specialized coating for increased tool life, or innovative cutting geometrics.

Motontools factory

   Hunan Moton Tools Co. Ltd  is a Chinese company located in Zhuzhou City Hunan Province. where is famous in the world for its tungsten carbide industry.  able to manufacture carbide CNC inserts, solid carbide end mills, drills, PCD&CBN inserts, shims, special cutting tools, carbide and ceramic rods and other non-standards products.
   The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R& D center and QC teams.

   50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russia, Turkey, Europe, USA, Mexico, Vietnam,Thadiland,India,Indonesia and etc.


moton carbide tools awards

moton carbide tools reviews

moton carbide tools delivery

Warmly WELCOME to contact us!

WhatsApp:+86 186 84806856

E-mail: info@motontools.com sales@motontools.com

Website: http://www.motontools.com

Address: A3 Plant,Xinmajingu Industrial Zone,Tianyuan District,Zhuzhou City,Hunan Province, 412007 CHINA



hrc 55 degree carbide end mill
Dimension  (mm)
DC APMX DCON OAL
1 3 4 50
2 5 4 50
3 8 3 50
3 12 3 75
3 8 4 50
3 8 6 50
4 10 4 50
4 20 4 75
4 25 4 100
4 10 6 50
5 13 5 50
5 20 5 75
5 25 5 100
5 13 6 50
6 15 6 50
6 20 6 75
6 30 6 100
6 40 6 150
7 18 8 60
8 20 8 60
8 25 8 75
8 35 8 100
8 50 8 150
9 23 10 75
10 25 10 75
10 40 10 100
10 50 10 150
11 28 12 75
12 30 12 75
12 45 12 100
12 55 12 150
14 35 14 80
14 45 14 100
14 60 14 150
16 45 16 100
16 60 16 150
18 45 18 100
18 60 18 150
20 45 20 100
20 60 20 150
