HRC45-HRC55-HRC65-Superior-Quality-on-H6-Rods-of-Tungsten-Carbide

Application:    End Mill, Drill Bit, Hand Tools, etc.

Surface Treatment:    Blank, Polished

Shape:    Square

Hardness:    87.5~90.5

Materials:    Tungsten Carbide

Grade:    K10 K20 K30 Yl10.2 Yu10

Types:    Solid Carbide Rods, Rods with Coolant Holes

Sizes:    Diameter 1~ Diameter 32, Length 330

Tungsten carbide rods used in make the drill bits, end-mills, reamers, automobile special cutters, printed circuit board special cutters, engine special cutters, horologe processing special cutters, integral vertical milling cutter, graver and etc.

Besides, they can bu used for making of cemented carbide stamping head, core bar and perforation tools. Both sintered blanks and ground tungsten carbide rod are supplied.

We 'd like to introduce our Tungsten Carbide Rods to you, with professional production technology and stable quality:

Types available are:

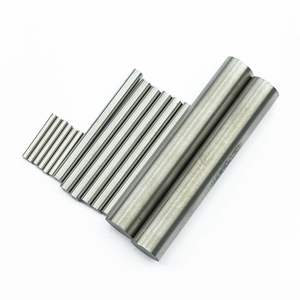

Tungsten carbide rods diameter from 1mm-45mm, length from 50mm-1000mm
One coolant hole rods diameter from 3mm -30mm, length is 330mm
Two coolant holes rods diameter from 4mm -20mm, length is 330mm
Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm

Normal Grades are:

 MTC10    WC: 90%, CO:10%, Grain size: 0.8, Density: 14.4, Hardness: 91.8HRA, T.R.S: 3800

  MTC06    WC: 94%, CO:6%, Grain size: 0.4, Density: 14.85, Hardness: 94.8HRA, T.R.S: 3800

 MTC08    WC: 92%, CO:8%, Grain size: 0.4, Density: 14.65, Hardness: 93.6HRA, T.R.S: 3800

MTC12    WC: 88%, CO:12%, Grain size: 0.4, Density: 14.25, Hardness: 92.6HRA, T.R.S: 3500
