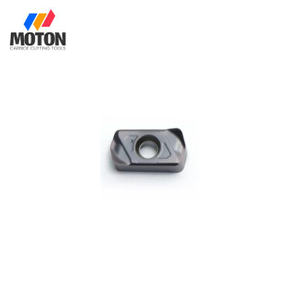

LNMU0303ZER Carbide Milling Inserts with Coated LNMU 0303 ZER LNMU0303 Turning Insert CNC Milling Inserts for Milling Tool

LNMU0303ZER,LNMU0303ZER,LNMU0303ZER,carbide inserts,cnc inserts,indexable inserts
Availability:
Quantity:
Inquire Add to Basket

  • LNMU0303

  • MOTON

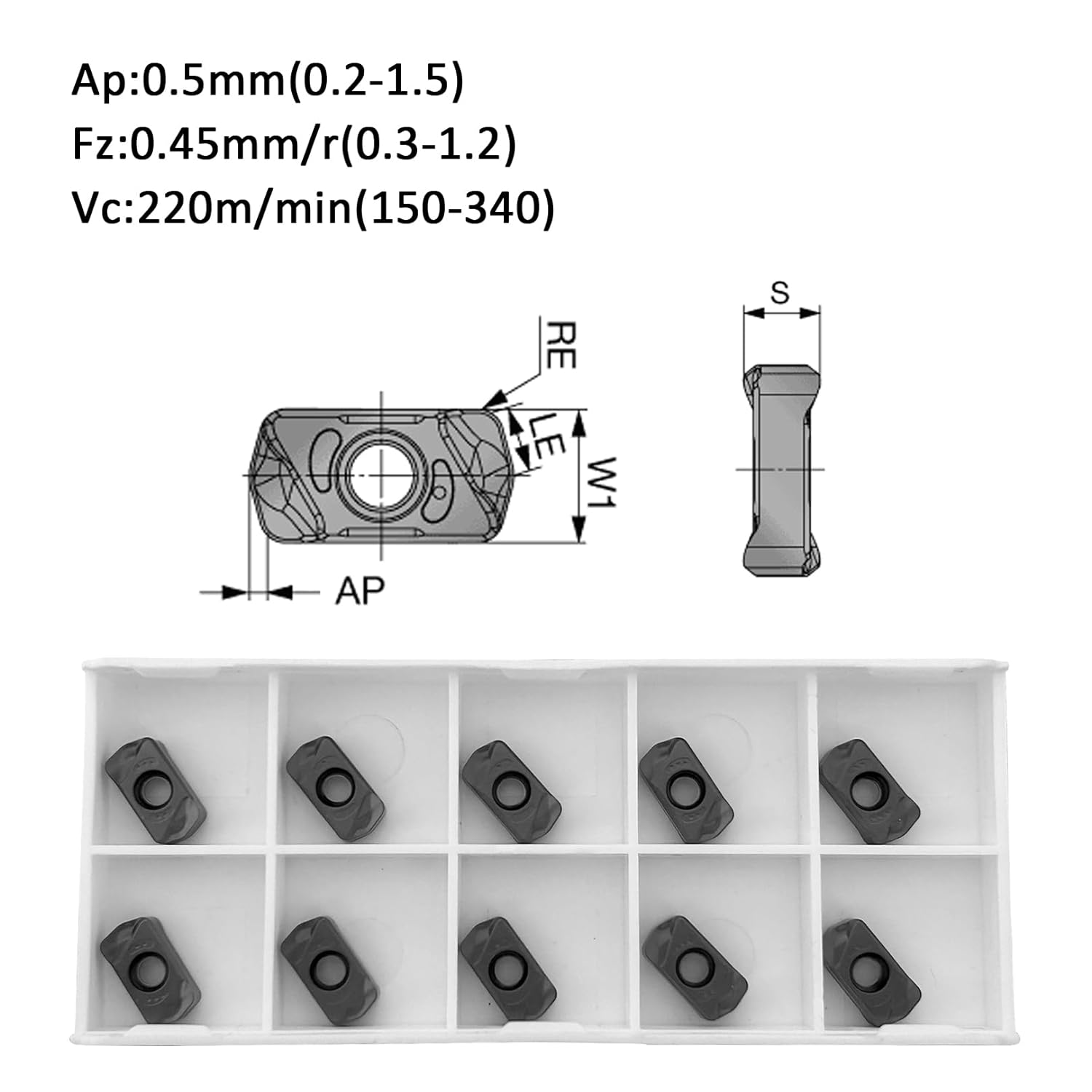

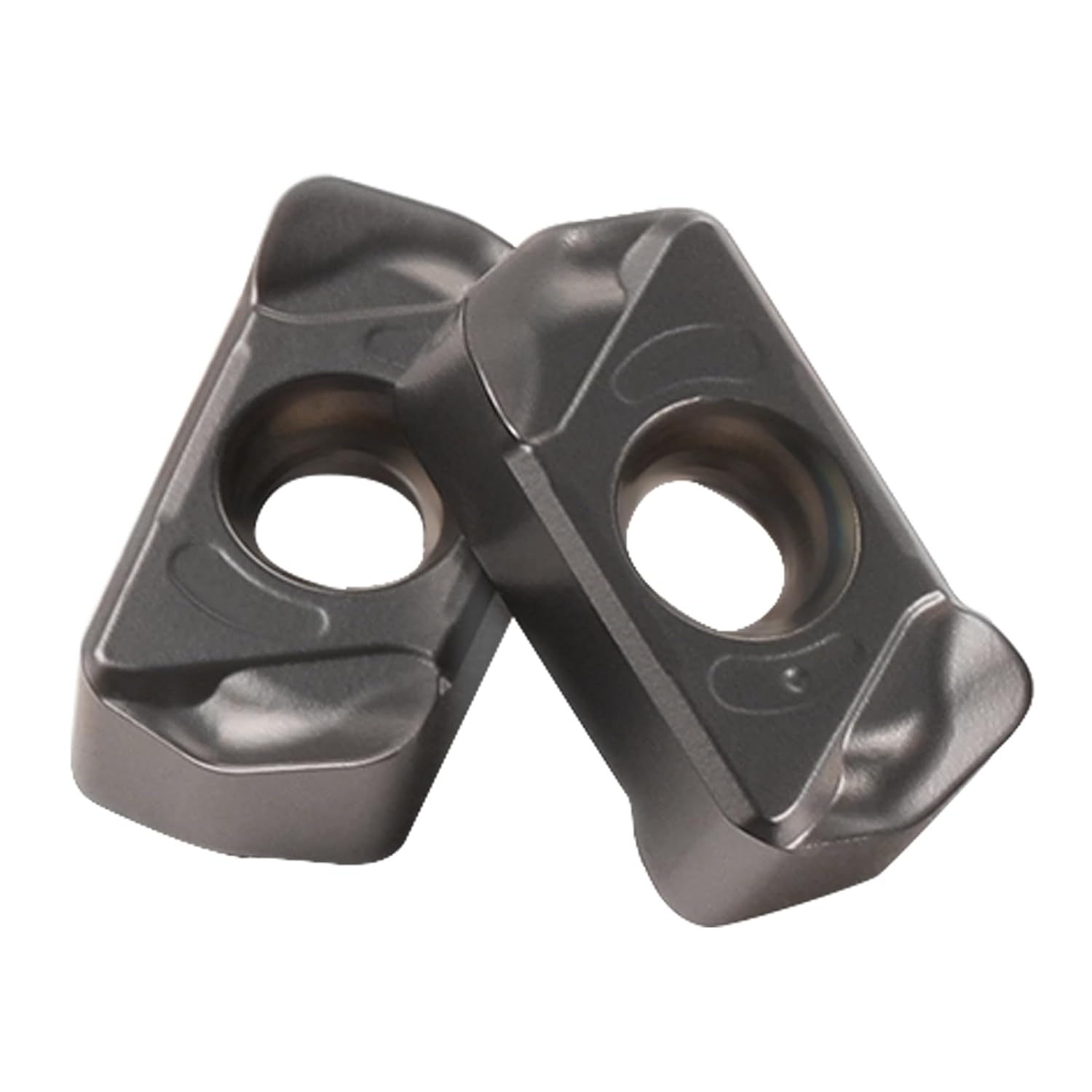

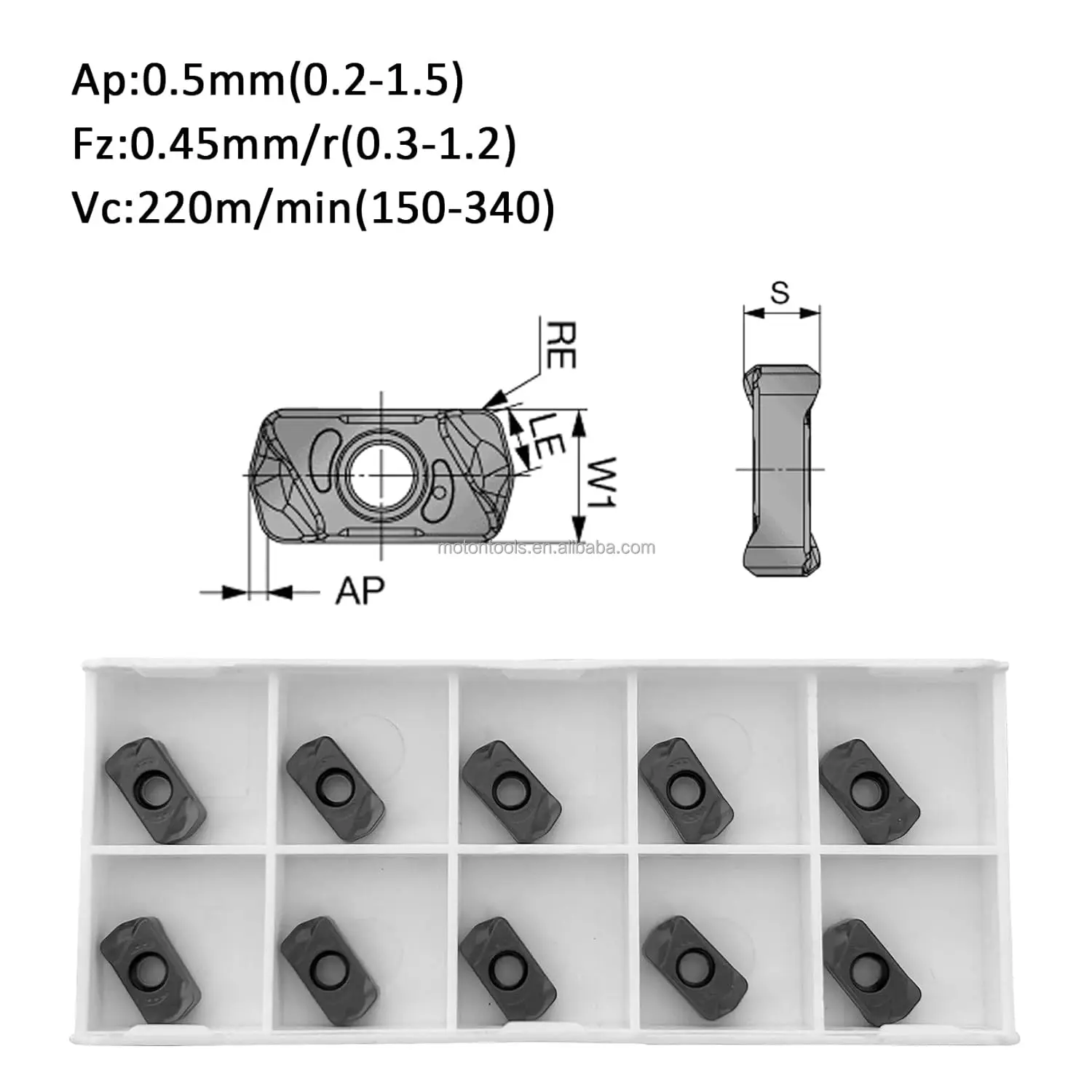

Carbide Milling Inserts with Coated LNMU0303ZER LNMU 0303 ZER LNMU0303 Turning Insert CNC Milling Inserts for Milling Tool

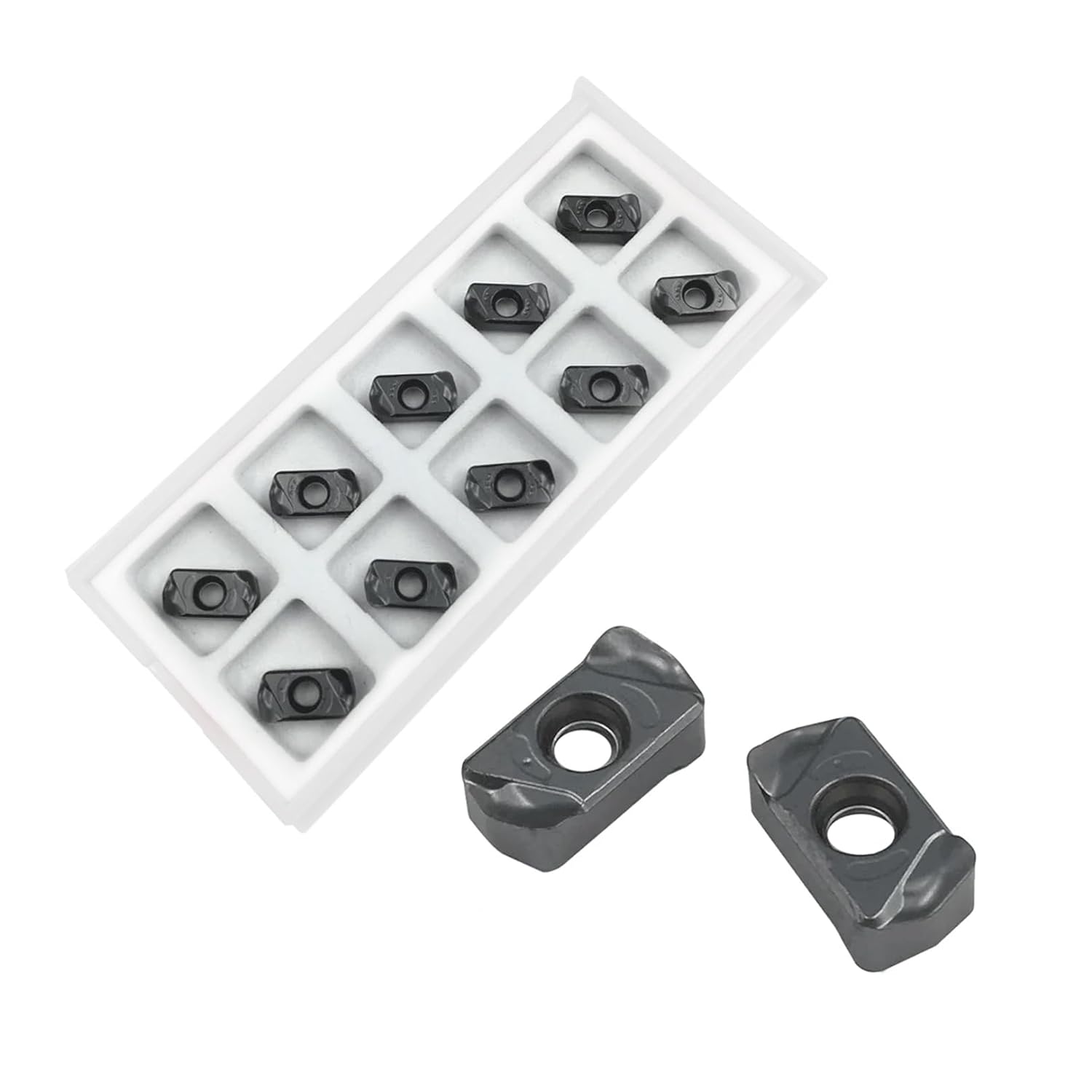

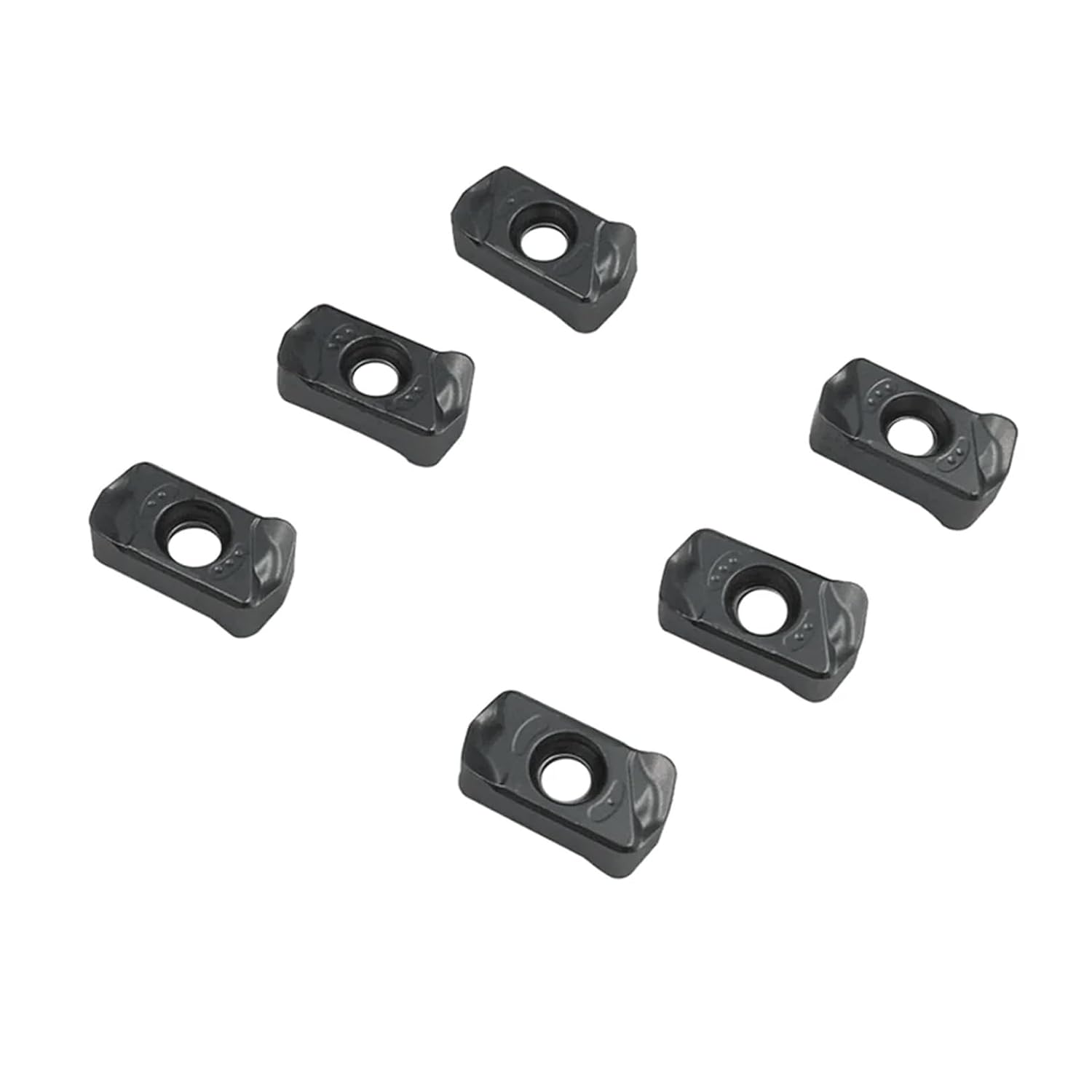

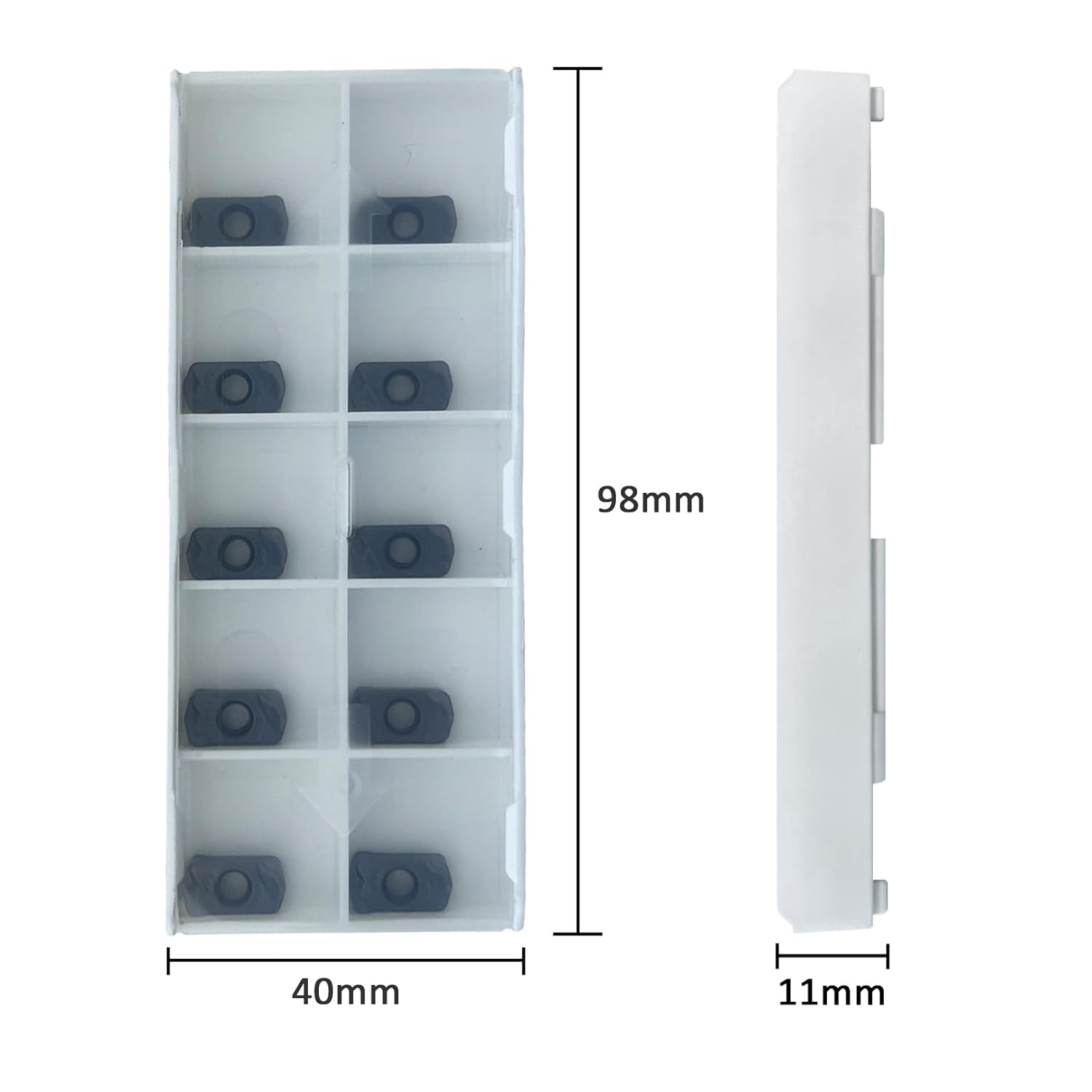

* [Package Included]: 10pcs LNMU03003ZER CNC inserts；
* [LNMU03003ZER CNC inserts]:Inserts made of carbide, coated with TiN, for finishing and semi-finishing work, with high hardness,low friction coefficient, good wear resistance and chemical stability for more solidity and precise positioning;
* [TiN Coated]:Tin is a universal PVD coating, which can improve tool hardness and have a high oxidation temperature. The coating can be used for high speed steel cutting tools or forming tools to obtain good machining results;
* [Material]: made of solid carbide with mutilayer coated, offer long life and faster cutting speed, low friction coefficient, good wear resistance;
* [Application]: for turning and milling carbon and alloy steels, tools steel and stainless steel;
Specification
Grade
Application
YBC151
High wear resistance insert with coating,such as MT-TICN,thick AL2O3 and TIN;Suitable for steel finishing.
YBC251
Blade security good toughness matrix in MT - TICN, thick AL2O3, excellent combination of TIN coating;Is suitable for  semi-finishing steel.
YBC351
In the high strength plastic substrate resistance and MT - TICN, thick AL2O3, TIN coating combination;Has good toughness and plasticity deformation, suitable for steel The rough machining.
YBD151
High wear resistance matrix and MT - TI (CN), thick excellent combination, AL2O3, and TIN coating is suitable for finishing and semi-finishing of cast iron materials.
YBM151
pecial organization structure matrix combined with thin TICN, AL2O3, TIN coating, has a good impact resistance and resistance to plastic deformation ability, at the same time Good shock resistance, suitable for the finishing, semi-finishing and roughing of stainless steel.
YBM251
TICN substrate from good toughness and strength, thin, AL2O3, and TIN coating is suitable for semi-finishing and roughing of stainless steel.
YBM253
Stainless steel efficient processing CVD new brands, which are widely used in big cut deep into to efficient processing field.To adopt advanced technology of ultrafine grain nanostructured coating, Gradient alloy substrate with high toughness,excellent performance, in the big cutting depth, feed, high speed cutting process has excellent cuttingperformance.
YBC152
Thick thick TICN and AL2O3 coating, the impact toughness increase at the same time, the wear resistance has increased significantly, is processed to semi-finishing steel high-speed cutting The ideal choice of the cutting.Cutting speed can be increased by more than 25%, under the same cutting speed and tool life can be improved by more than 30%.
YBC252
Adopts thick TICN and AL2O3 coating thick, strong ability to resist plastic deformation and the blade intensity, is closed from finishing to rough machining of steel Choose brand.Under the high removal rate cutting parameters or harsh working conditions has stable performance, and can achieve more green dry cutting.cut Cutting speed can be increased by more than 25%, under the same cutting speed and tool life can be improved by more than 30%.
Carbide Milling Inserts with Coated LNMU0303ZER LNMU 0303 ZER LNMU0303 Turning Insert CNC Milling Inserts for Milling Tool
WHY choose us?
China Manufacture good quality Carbide Turning Insert
Our guarantee:
1.  100% original carbide powder and excellent wear resistance and toughness;
2.  High performance of CVD/PVD coating, with super hard and smooth surface;
3.Fully adopted in advance technology and equipments , expecially the Balzers coating machines and mechanial arm grinding machines
4.  ISO9001: 2008 certificate, ISO14001:2004. quality system control;
5.  Professional chip-breaker design and provides perfect cutting performance;
6.  Precise dimension, high accuracy;
7.  Super long and consistent tool lifespan;
8.  Customized insert design, coating, marking, packing are available.
9. Every pcs will be checked by microscope examination before sending.
Various type for you to choose…
Noted: please inform us detail application so that we supply you suitable grade and chipbreaker.
1:For steel, stainless steel, cast iron,aluminum etc. processing
2.Excellent wear resistance and breakage resistance
3.Professional inspection and high precision, easy replacement, general use

Turning inserts:
CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG VNMG VBMT KNUX
Milling inserts :

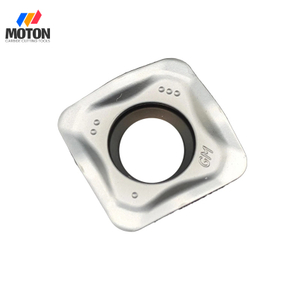

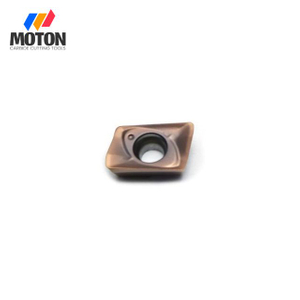

APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT
Grooving inserts:
MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4
Threading inserts:
11IR 11ER 16ER 16IR 22ER 22IR
Inserts for aluminum:
APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED
U drill inserts:
SPMT WCMX WCMT
Inserts for cast iron:
CNMA DNMA SNMA TNMA VNMA WNMA
Carbide inserts are widely used in various industries.
Company Profile
Our customers have given us many positive reviews, including those from Russia.Brazil,Turkey,USA,etc
FAQ
1. Flank Wear?
Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy. Soft grades,Excessive cutting speed,Small flank angle,Low feed.Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear?

Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.

3. Chipping?

Sudden fracture of cutting edge(rake face and flank),Instability insert life.Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle

4. Insert Fracture?

Cutting resistance increased Poor surface roughness.Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.

5. Plastic Deformation?

Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness.Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).

6. Build-Up-Edge?

Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.Cutting speed too low,Cutting edge obtuse,Unsuitable tool material.Increase cutting speed,Increase rake angle,Select small sticking force.
Packing & Delivery
Quick Response
Inquiry will be replied within 12 hours.
Experience
has over 15 years manufacturing experience on cutting tools.
Competitive Price
Best quality for best price
Short Lead Time
5-7 workdays for ready stocks and 2-4 weeks for order.
Flexibility
Small orders are acceptable, help you test them firstly.
OEM
Custom fabrication according to your drawings, samples or designs.
3,000 SKU and 500,000 pcs carbide inserts in stock!!!
If you buy a lot, please contact us to discuss the wholesale price.
Our customer service is always online, you can consult if you have any questions
