Single-cut carbide burrs are typically used for milling, deburring, and cleaning of ferrous metals, stainless steel, cast iron, and hardened steel. Double-cut carbide burrs have two flutes. They are sometimes referred to as diamond-cut or crosscut.
It can be processed cast iron, cast steel, carbon steel, alloy steel, stainless steel, copper, aluminum and other metals, and marble, jade, bone and other non-metallic. Processing hardness up to HRA85.
Carbide Rotary Burr

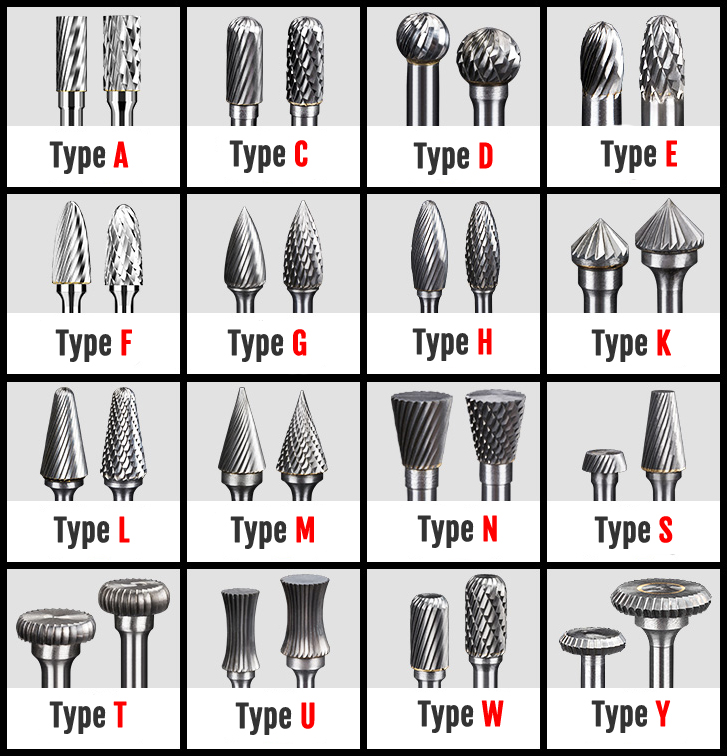

Type A, B, C, D, E, F, G, H,K,L,M,N,S,T,U,W,Y
Material:Tungsten Carbide
Total length:38mm - 90mm(can be customized)
Shank length:37mm - 65mm(can be customized)
Shank diameter: 3mm - 8mm(can be customized)
Grinding head diameter:3mm - 16mm
Tool usage
Carbide rotary burr are extremely versatile and are used in mold processing and manufacturing, chamfering, rounding and groove processing of mechanical parts, cleaning flash, burrs and welds of castings, forgings and weldments, Finishing processing of pipes and impeller flow channels, arts and crafts engraving of metal and non-metal materials (bone, jade, stone)
Instructions for use
Carbide rotary burr are mainly used with electric tools or pneumatic tools (can also be installed on machine tools). Moton Tools suggested the driving speed is generally 6000-50000 rpm. Generally, it is 6000-50000 rpm. At this speed, the effect will be compromised.
The difference between double cut and single cut
Since the double-cut pattern is cross-grained, it is more suitable for objects with relatively low density. For example: wood, plastic, aluminum, etc.! The cross-grained chip evacuation is fast, and it is not easy to block the grain when polishing and engraving, so double-cut are more suitable for soft objects! The texture of the single-cut determines that it is not ideal to use softer objects, because when the single-cut tool is cutting, broken waste can easily block the flute, causing the texture depth of the flute to change and the cutting ability to decrease; that is, we It is usually said that the knife is not fast! The single-slot type is more suitable for use on relatively hard objects such as iron and steel.
