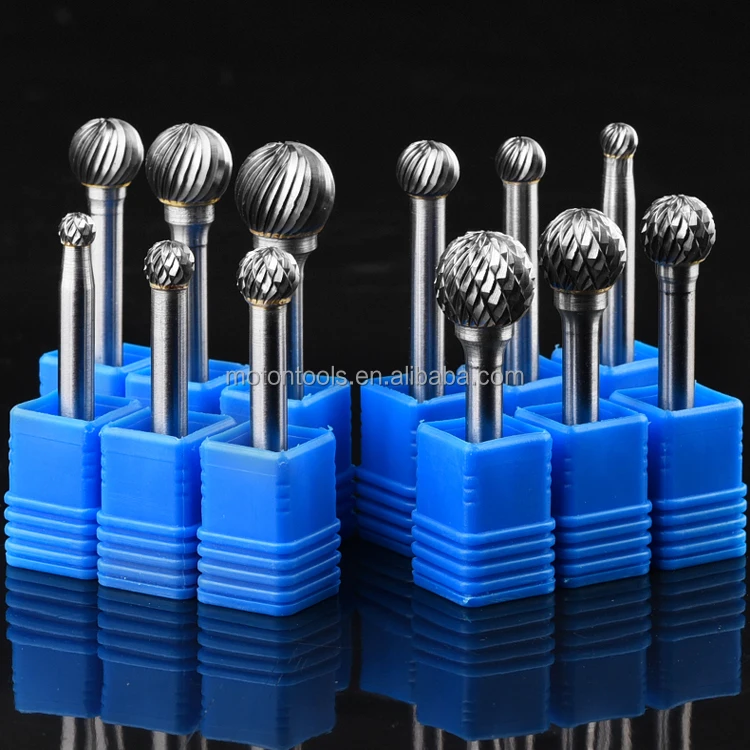

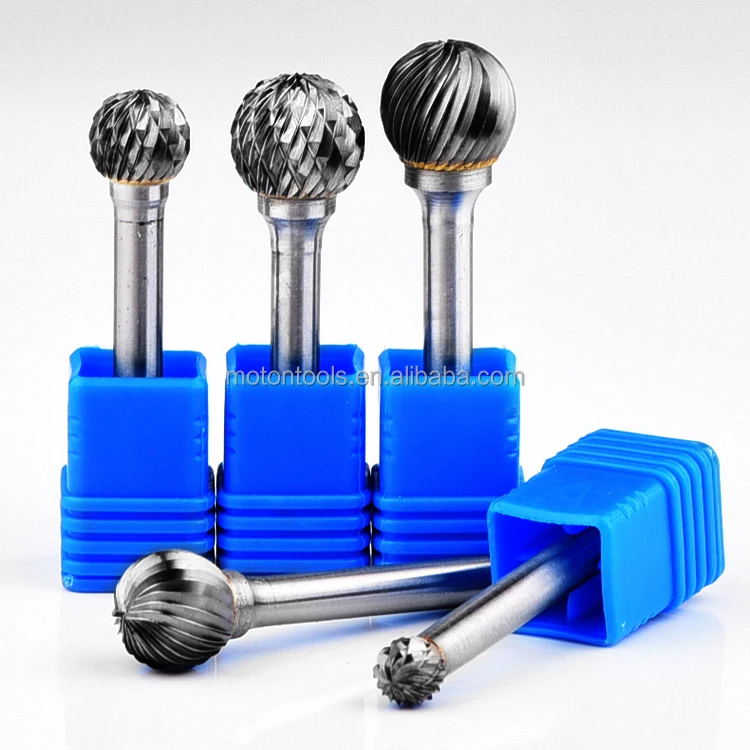

Type D Ball Shape Single/Double Cut 3-8mm Tungsten Carbide Rotary Burrs with Factory price

Availability:
Quantity:
  • D

  • MOTON

If you buy a lot, please contact us to discuss the wholesale price.
Our customer service is always online, you can consult if you have any questions
Why choose us?

1 Machining various kinds of metals, including hardened steel HRC65
2 Increasing production efficiency dozens of times than hand tools, and 3 ~ 5 times than small emery wheels
3 Long working life, which is 10 times than HHS burrs, and 50 times than small emery wheels
4 Finish machining various kinds of die cavities, removing burrs of casting, forging and welding spatter
5 Chamfering angle, circular bead and flute on mechanical compenents
6 Chamfering and burring pipes
7 Polishing impeller channel
8 Grinding holes to accurate shape

It can be processed cast iron, cast steel, carbon steel, alloy steel, stainless steel, copper, aluminum and other metals, and marble, jade, bone and other non-metallic. Processing hardness up to HRA85.

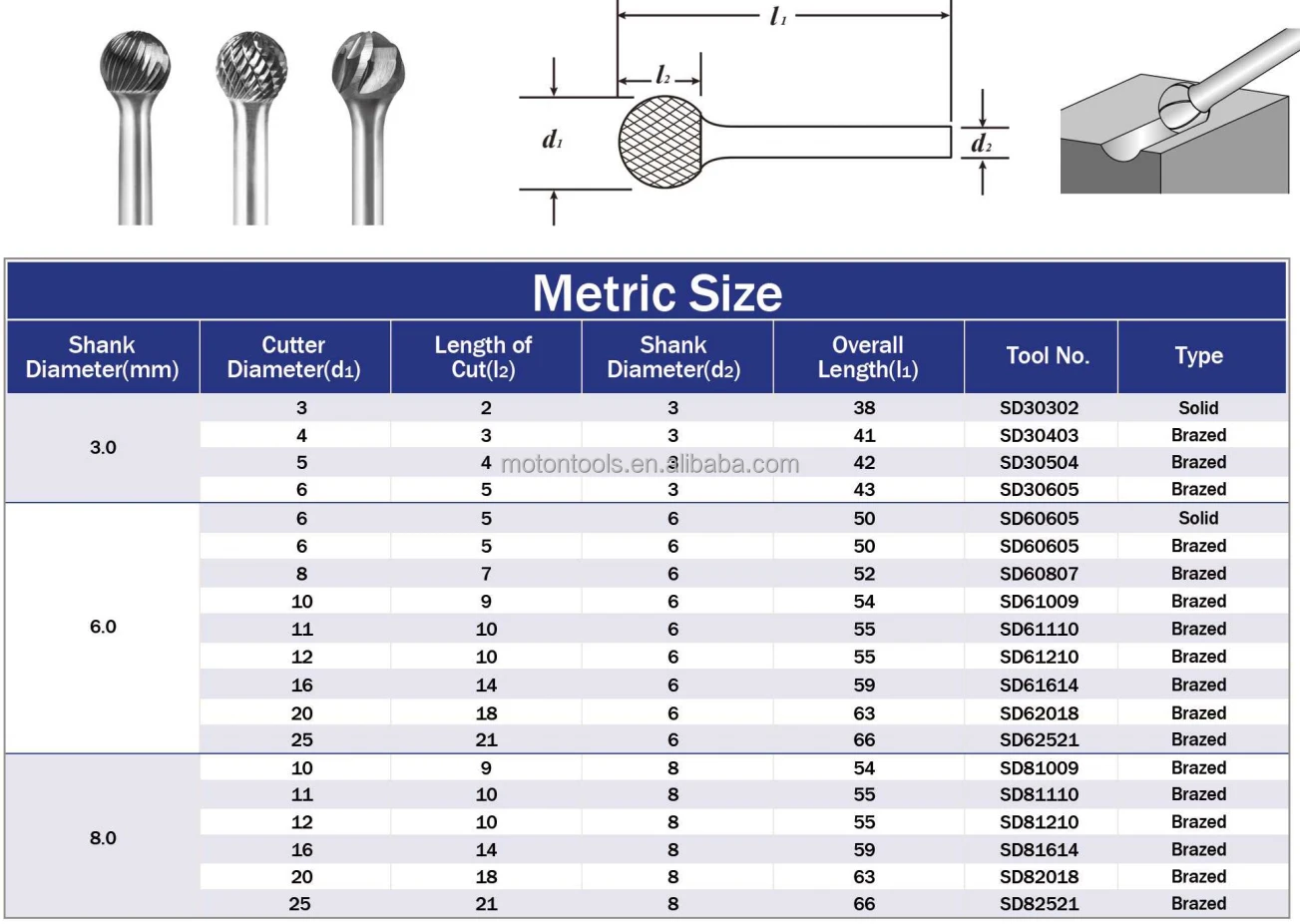

Specification
Type D Ball Shape Single/Double Cut 3-8mm Tungsten Carbide Rotary Burrs with Factory price

Carbide Rotary Burr
Type A, B, C, D, E, F, G, H,K,L,M,N,S,T,U,W,Y
Material:Tungsten Carbide
Total length:38mm - 90mm(can be customized)
Shank length:37mm - 65mm(can be customized)
Shank diameter: 3mm - 8mm(can be customized)
Grinding head diameter:3mm - 16mm
other dimension can be customized,please feel freely to contact us.

Tool usage

Carbide rotary burr  are extremely versatile and are used in mold processing and manufacturing, chamfering, rounding and groove processing of mechanical parts, cleaning flash, burrs and welds of castings, forgings and weldments, Finishing processing of pipes and impeller flow channels, arts and crafts engraving of metal and non-metal materials (bone, jade, stone)

Instructions for use

Carbide rotary burr are mainly used with electric tools or pneumatic tools (can also be installed on machine tools). The driving speed is generally 6000-50000 rpm. Generally, it is 6000-50000 rpm. At this speed, the effect will be compromised.

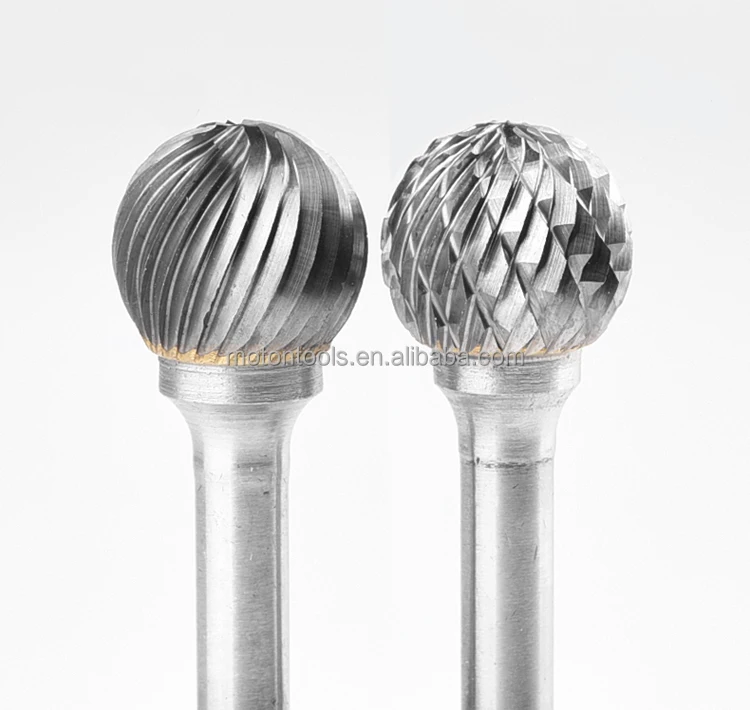

The difference between double cut and single cut

Since the double-cut pattern is cross-grained, it is more suitable for objects with relatively low density. For example: wood, plastic, aluminum, etc.! The cross-grained chip evacuation is fast, and it is not easy to block the grain when polishing and engraving, so double-cut are more suitable for soft objects!
